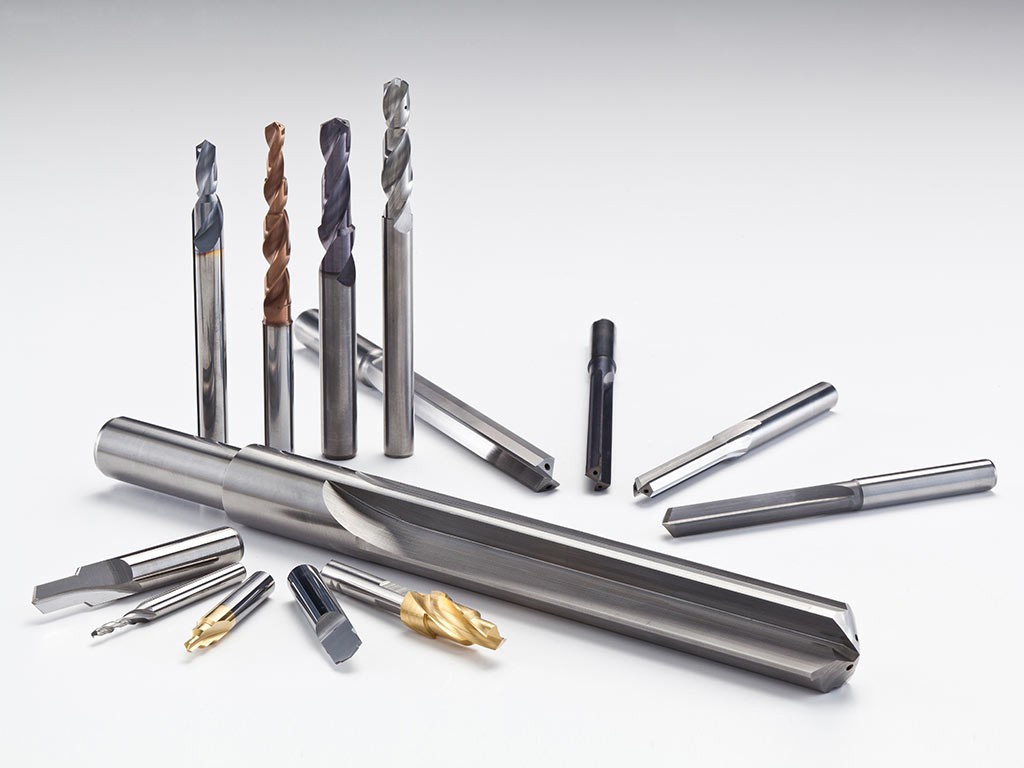

整體硬質合金拋光鉆鉆頭介紹(又稱:拋光鉆、直槽鉆):
硬質合金直槽鉆制造特點:
1.拋光鉆鉆頭的尺寸形式按樣本標準制造;
2.拋光鉆鉆頭的橫刃修正H形;
4.拋光鉆鉆頭的排屑槽形 優化槽形,便于排屑,雙棱邊用于鉸孔,起到鉸刀鉸削功能;
3.拋光鉆鉆頭的主刃頂角120°~135°;
5.拋光鉆鉆頭的刃徑公差 h7;
6.拋光鉆鉆頭的柄徑公差 h6;
7.拋光鉆鉆頭的表面處理涂層或不涂層;
8.拋光鉆鉆頭的材質基本都以整體硬質合金或V型焊接;
合金拋光鉆應用:
拋光鉆鉆頭又叫直槽鉆,主要用于高硅鋁合金,灰鑄鐵,球墨鑄鐵,銅合金等短切屑材料,
對于較深孔加工時我們建議選擇帶內冷拋光鉆鉆頭;直槽鉆的定心能力強,能獲得穩定的尺寸精度和優異的表面質量。

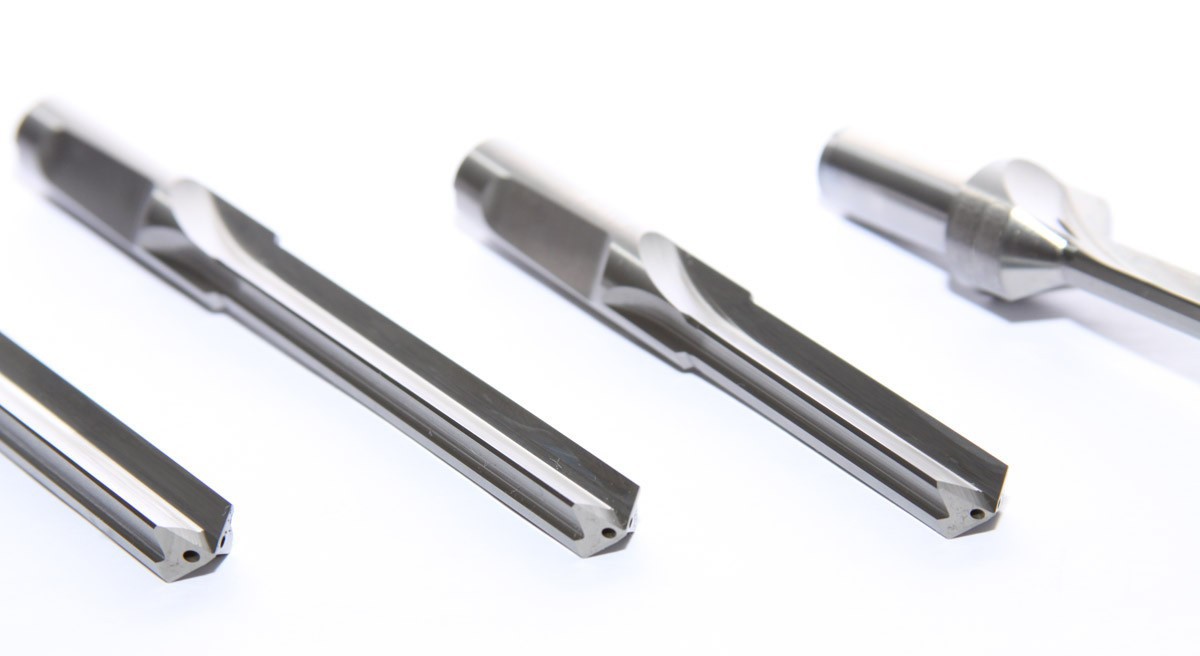

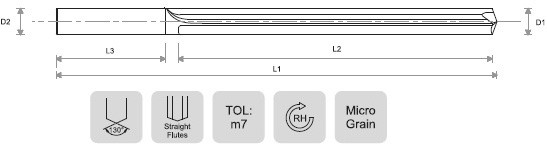

合金拋光鉆鉆頭規格型號
規格型號 | 刃部直徑 | 槽長長度 | 總長長度 | 柄部長度 | 柄部直徑 |
---|---|---|---|---|---|
D1 | L2 | L1 | L3 | D2 | |
YOU-BBD-81-030 | 3.0 | 24 | 66 | 36 | 3.0 |
YOU-BBD-81-035 | 3.5 | 24 | 66 | 36 | 3.5 |
YOU-BBD-81-040 | 4.0 | 30 | 74 | 36 | 4.0 |
YOU-BBD-81-045 | 4.5 | 30 | 74 | 36 | 4.5 |
YOU-BBD-81-050 | 5.0 | 36 | 74 | 36 | 5.0 |
YOU-BBD-81-055 | 5.5 | 36 | 74 | 36 | 5.5 |
YOU-BBD-81-060 | 6.0 | 36 | 74 | 36 | 6.0 |
YOU-BBD-81-065 | 6.5 | 53 | 91 | 36 | 6.5 |
YOU-BBD-81-070 | 7.0 | 53 | 91 | 36 | 7.0 |
YOU-BBD-81-075 | 7.5 | 53 | 91 | 36 | 7.5 |
YOU-BBD-81-080 | 8.0 | 53 | 91 | 36 | 8.0 |
YOU-BBD-81-085 | 8.5 | 61 | 103 | 40 | 8.5 |
YOU-BBD-81-090 | 9.0 | 61 | 103 | 40 | 9.0 |
YOU-BBD-81-095 | 9.5 | 61 | 103 | 40 | 9.5 |
YOU-BBD-81-100 | 10.0 | 61 | 103 | 40 | 10.0 |
YOU-BBD-81-105 | 10.5 | 71 | 118 | 45 | 10.5 |
YOU-BBD-81-110 | 11.0 | 71 | 118 | 45 | 11.0 |
YOU-BBD-81-115 | 11.5 | 71 | 118 | 45 | 11.5 |
YOU-BBD-81-120 | 12.0 | 71 | 118 | 45 | 12.0 |
YOU-BBD-81-125 | 12.5 | 74 | 124 | 45 | 12.5 |
YOU-BBD-81-130 | 13.0 | 74 | 124 | 45 | 13.0 |
YOU-BBD-81-135 | 13.5 | 74 | 124 | 45 | 13.5 |
YOU-BBD-81-140 | 14.0 | 74 | 124 | 45 | 14.0 |
YOU-BBD-81-145 | 14.5 | 83 | 133 | 45 | 14.5 |
YOU-BBD-81-150 | 15.0 | 83 | 133 | 45 | 15.0 |
YOU-BBD-81-155 | 15.5 | 83 | 133 | 45 | 15.5 |
YOU-BBD-81-160 | 16.0 | 83 | 133 | 45 | 16.0 |
YOU-BBD-81-170 | 17.0 | 93 | 143 | 45 | 17.0 |
YOU-BBD-81-180 | 18.0 | 93 | 143 | 45 | 18.0 |
YOU-BBD-81-190 | 19.0 | 101 | 153 | 50 | 19.0 |
YOU-BBD-81-200 | 20.0 | 101 | 153 | 50 | 20.0 |

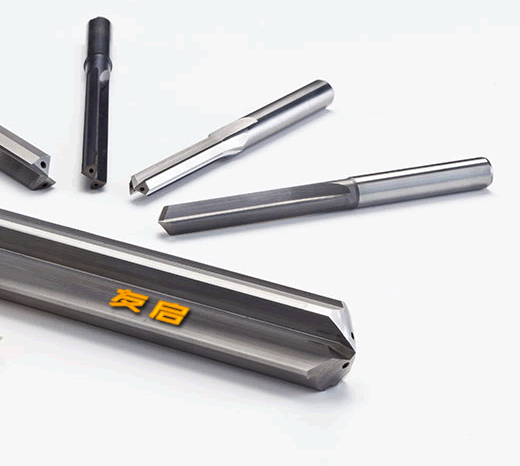

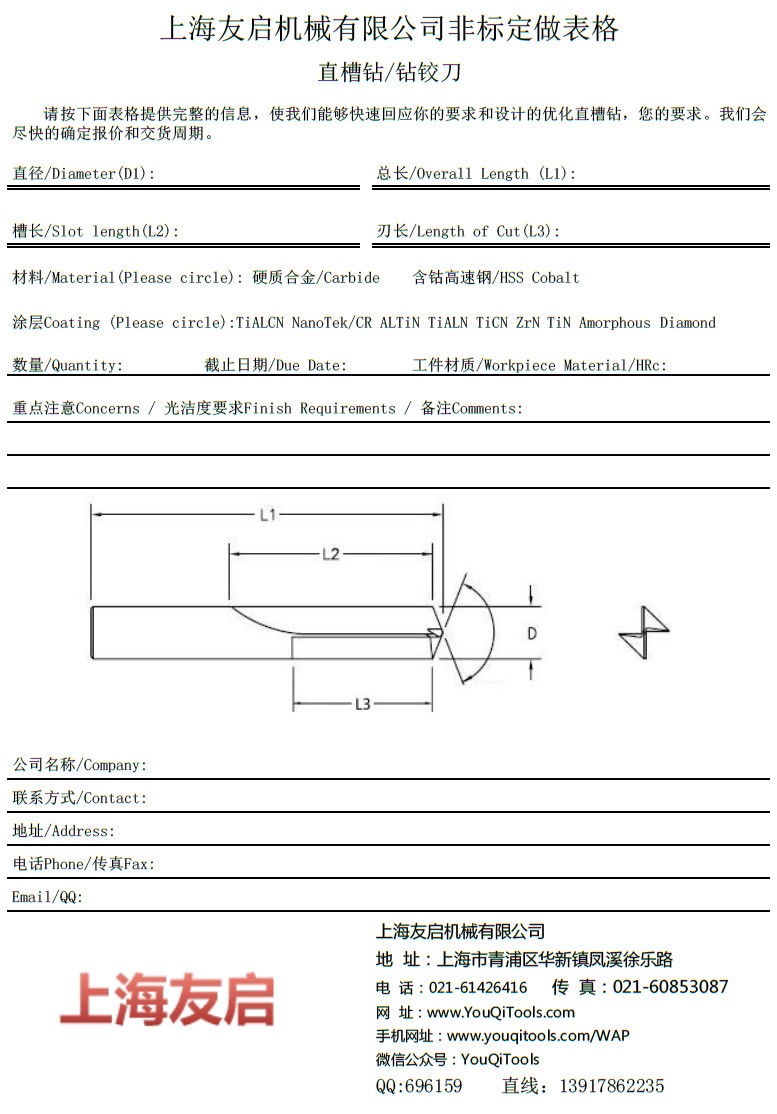

接受合金拋光鉆非標定制,價格與標準品比例一致。請按照下面表格格式填寫,或者下載PDF格式打印填寫
鉆鉸刀非標定做格式PDF下載地址:http://www.www.web958.cn/download/download6.html
